Plot SB-02

Development Summary *

Overall
Plot Area 3,576 m2
Tower 1 Maximum Height
(Above +14.25 m ASL)
+92.0 m
Tower 2 Maximum Height
(Above +14.25 m ASL)
+78.0 m
Designated Program (GFA)
Residential 36,000 m2
Retail 1,000 m2
Total Habitable GFA 37,000 m2
FAR 10.3
Parking Requirements
Estimated Parking Spaces 365

* Figures subject to revision in accordance with project entitlements and refinement

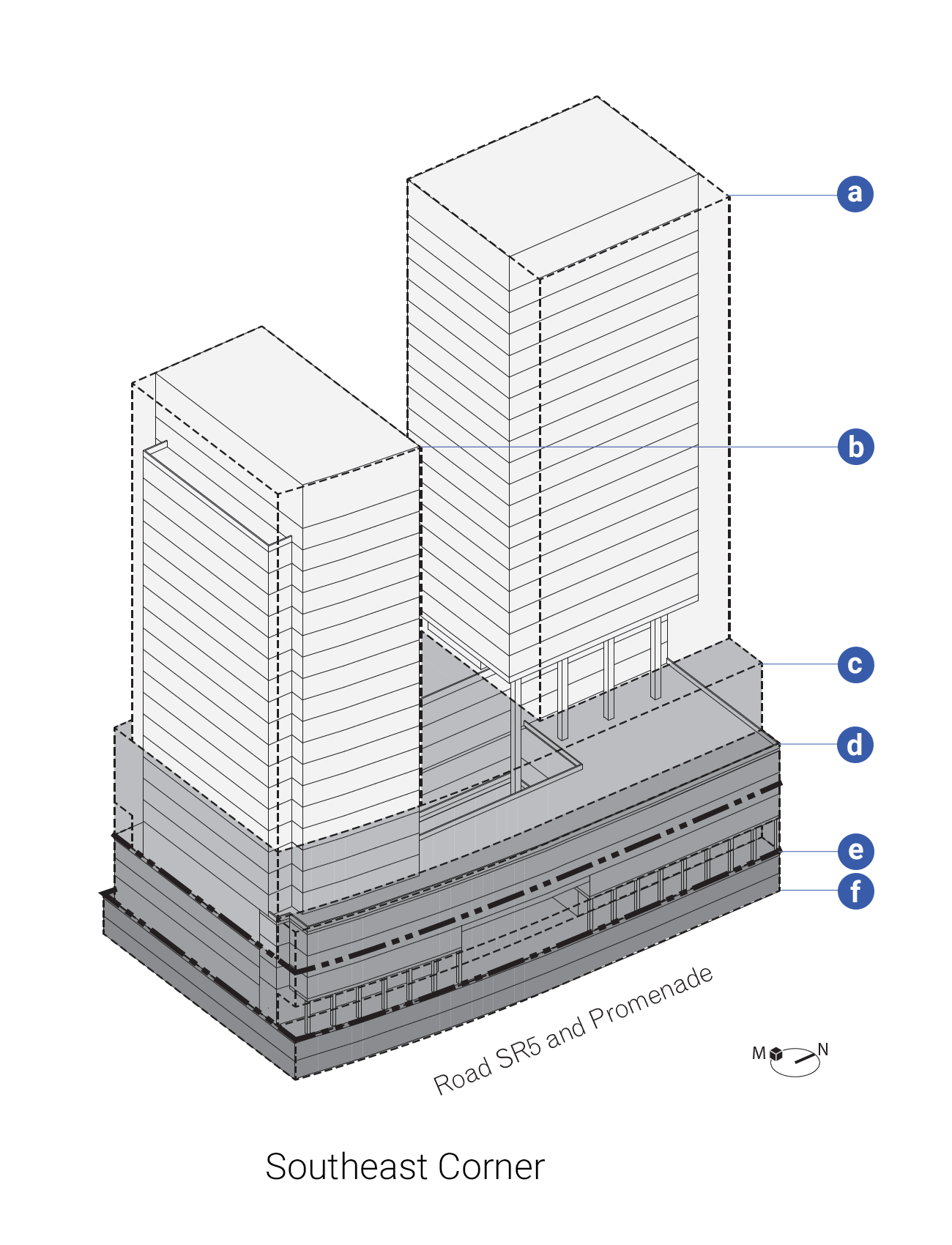

Massing Controls

  1. Maximum height Tower 1 +106.25 m ASL
    (+92.0 m above +14.25 m ASL)
  2. Maximum height Tower 2 +92.25 m ASL
    (+78.0 m above +14.25 m ASL)
  3. Top of Upper Podium +32.25 m ASL
    (+18.0 m above +14.25 m ASL)
  4. Top of Lower Podium - Waterfront +21.0 m ASL
  5. Promenade / Lower Street Level +3.0 m ASL
  6. Depth as needed to satisfy parking requirements

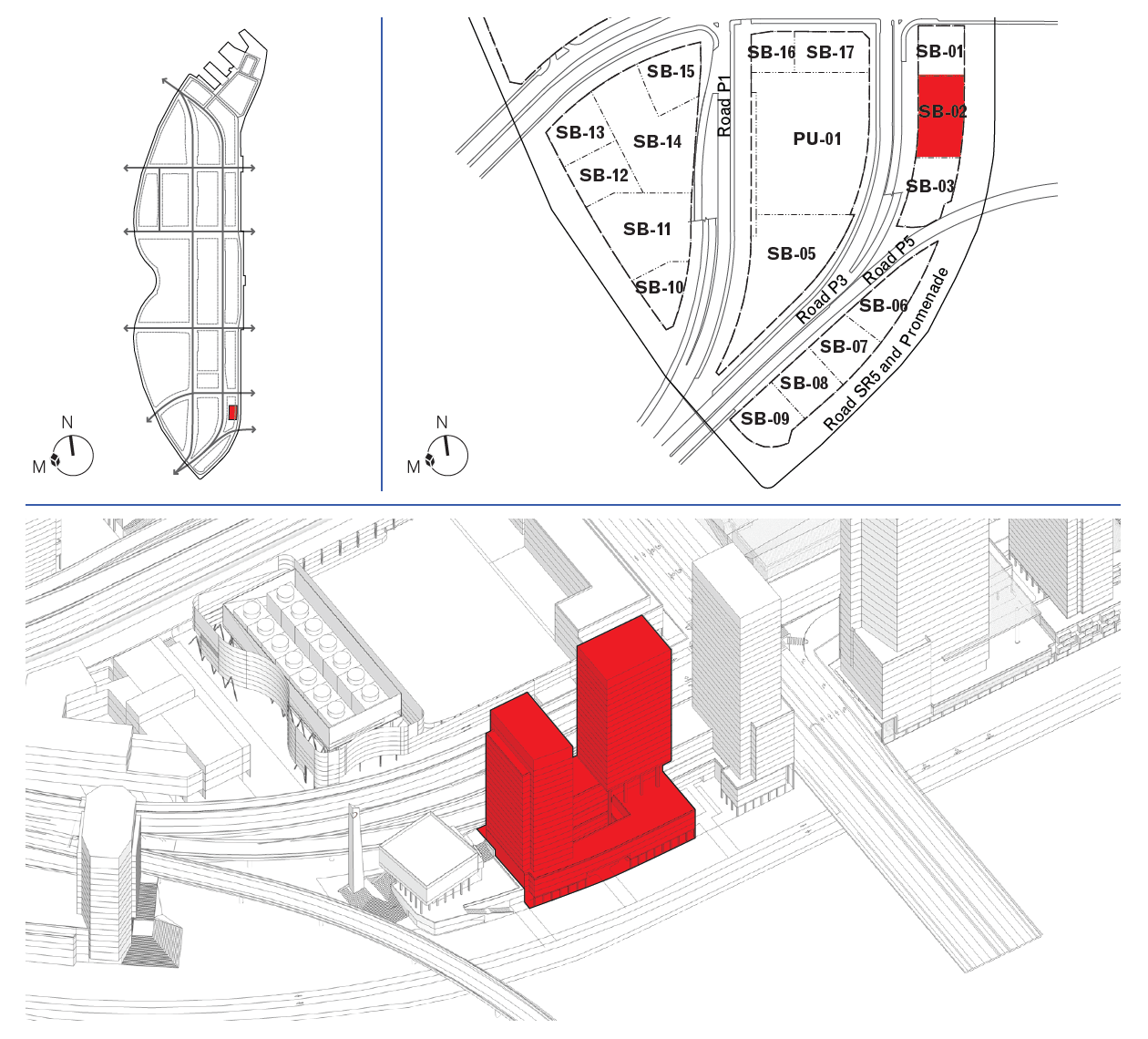

Plot Context
